Escalation Policies and Schedules
Connect a schedule to a service via escalation policy.
On-call schedules allow you to represent your teams’ on-call responsibilities in PagerDuty. Schedule members can begin receiving incident notifications once the schedule is added to an escalation policy, and a service uses that escalation policy.
Availability
Free accounts are limited to one schedule and one escalation policy. All other pricing plans offer unlimited schedules and escalation policies.
Connect a Schedule to a Service via Escalation Policy
Escalation policies allow you to connect services to on-call schedules, and they ensure that the right people are notified at the right time.
To connect an on-call schedule to a service:
- In the web app, go to People Escalation Policies click next to your desired escalation policy or create a new escalation policy.
- Add your schedule to the escalation policy at the appropriate level and click Save.
- For more information about configuring escalation policies, please see Escalation Policy Basics.
- Navigate to Services Service Directory select your desired service or create a new service.
- Assign your escalation policy to the service:
- If you’re editing an existing service, please read Edit a Service’s Escalation Policy.
- If you’re creating a new service, please read Create a Service.
Deactivate Schedules via Escalation Policies
If you would like to pause or deactivate notifications from a service connected to a particular schedule, you can change the escalation policy that the service uses.
To change the escalation policy a service uses:
- Navigate to Services Service Directory.
- Find the service that notifies the schedule you would like to pause or deactivate select the Settings tab click Edit in the Assign and Notify section.
- In the Assign to escalation policy section, select an escalation policy that does not use the schedule you wish to pause or deactivate.
- Click Save Changes.

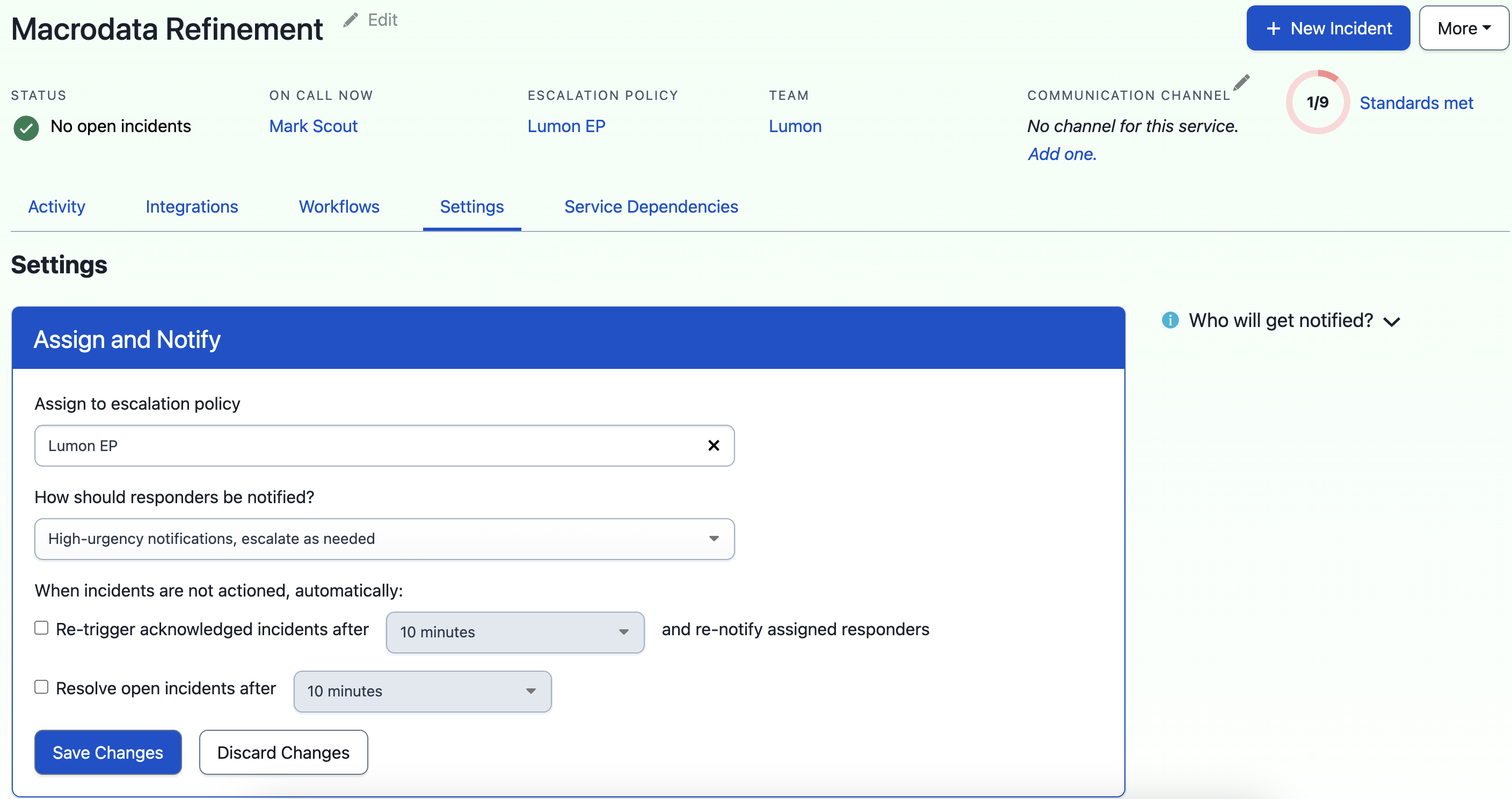

![image6.png Assign a different escalation policy to a service](https://files.readme.io/aaa5421-image6.png)
Assign a different escalation policy to a service
If any other services use the same escalation policy, you’ll need to repeat this process for those services, too.
Escalation Policy and Schedule Use Cases
Escalation policies and schedules can be configured in many ways to fit your team’s needs. Below are examples of common methods of configuring these features together:
- Notify multiple users during specific times
- Notify a secondary responder when the primary does not respond
Notify Multiple Users During Specific Times
In many cases, you will have a group of people on call during business hours and a different group of people on call after business hours, or different groups of people on call at various times of the day. The intended use of an escalation policy is to notify one person at a time, but you may have situations when you’d like to notify multiple people at the same time.
To notify multiple users at the same time, but only during specific times, you will want to:
- Create individual on-call schedules for each person.
- Add the schedules to the appropriate level of an escalation policy.
To demonstrate this, we'll use the following example:
- User 1 and User 2 are on call during business hours, Monday through Friday 0800 – 1700, and should be notified at the same time.
- User 3 and User 4 on call after business hours, Monday through Friday 1700 – 0800, and should be notified at the same time.
- User 5 and User 6 are on call during the weekend, Friday 1700 – Monday 0800, and should be notified at the same time.
Create Individual On-Call Schedules For Each Person
The first step is to create an on-call schedule for each user, reflecting their specific on-call times.

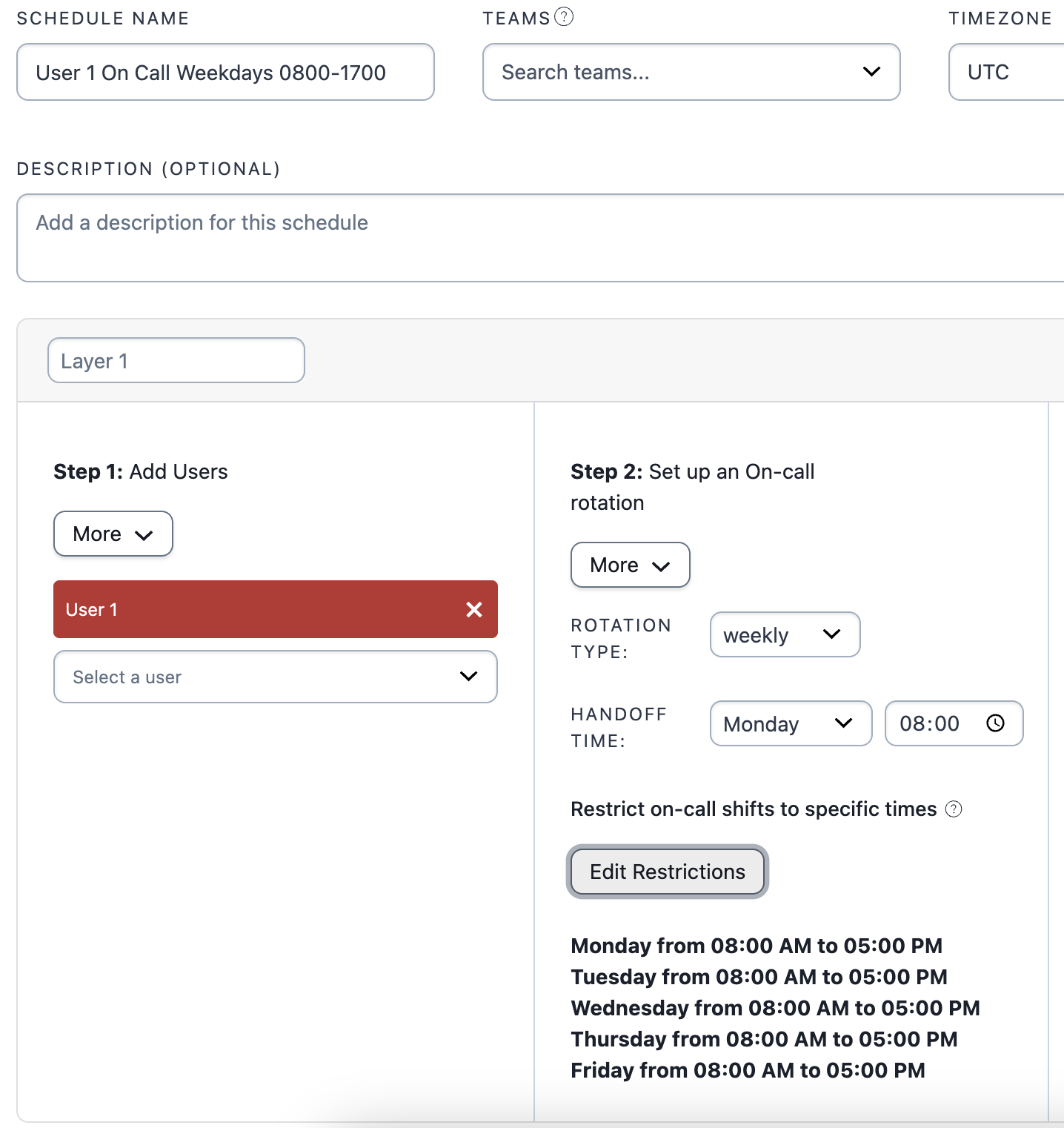

Let’s look at examples for each of the three shifts. Here is what User 1’s schedule would look like. User 1 is on call Monday through Friday from 0800 to 1700:
![image4.png User 1's restricted weekday shifts](https://files.readme.io/dbe0457-image4.png)
User 1's restricted weekday shifts

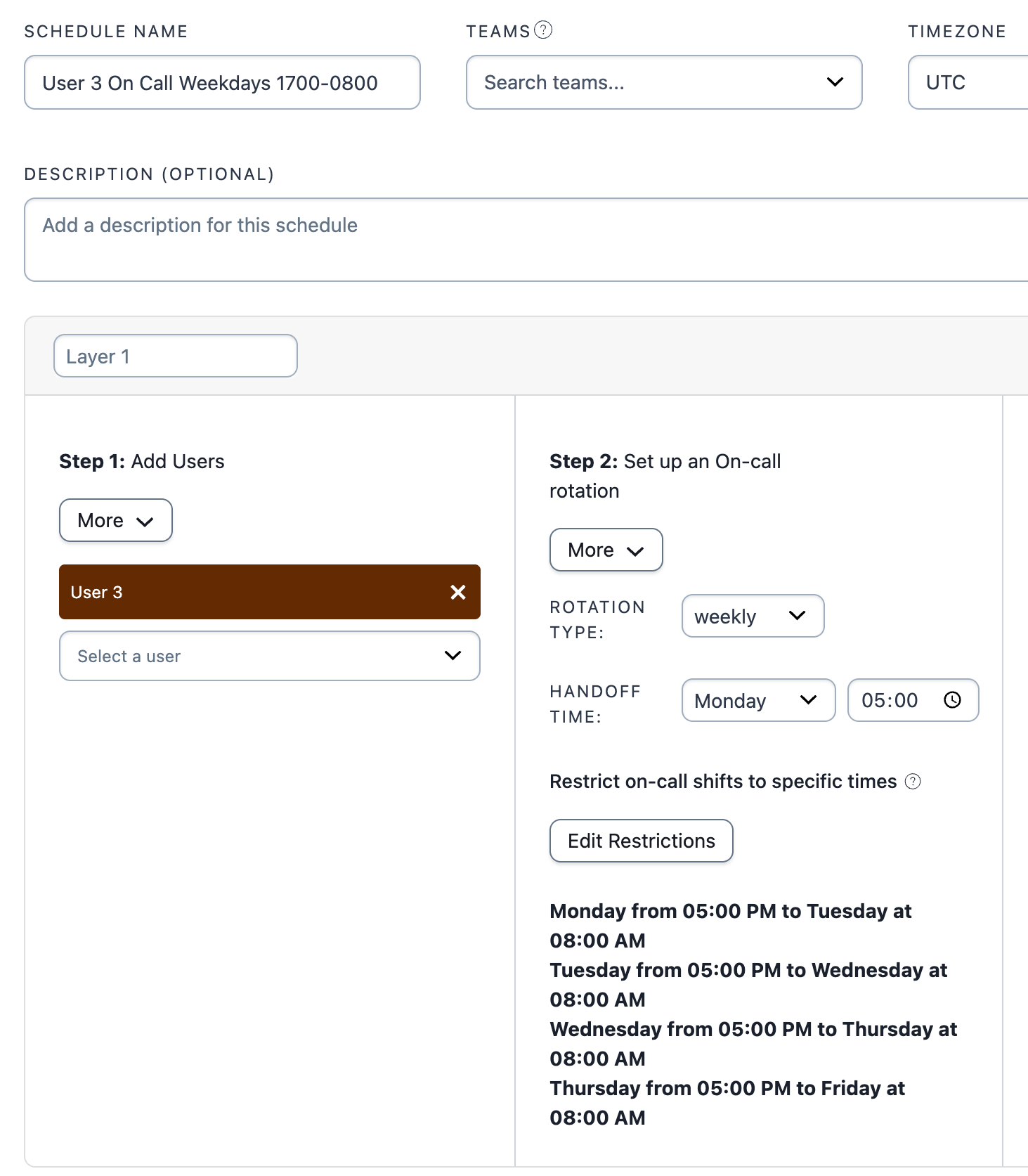

User 3 is on call during the week from 1700 to 0800:
![image3.png User 3's restricted weekday shifts](https://files.readme.io/8006f4f-image3.png)
User 3's restricted weekday shifts

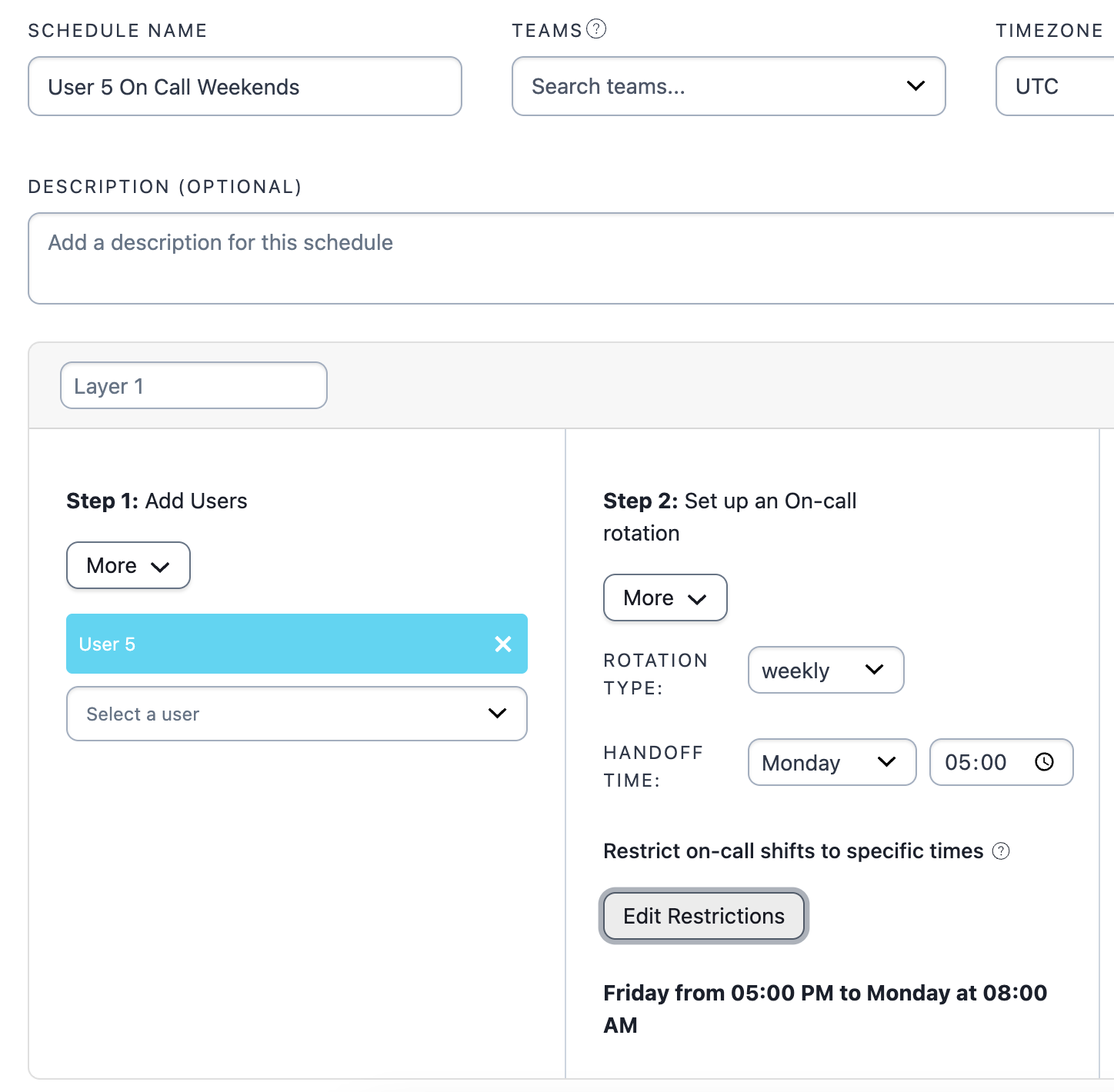

User 5 is on call over the weekend, from Friday 1700 to Monday 0800:
![image10.png User 5's restricted weekend shift](https://files.readme.io/eb483fc-image10.png)
User 5's restricted weekend shift
Add Schedules to an Escalation Policy
Once you have created a schedule for each user, you can add them to an escalation policy.
The image below shows all six schedules in the first level of the escalation policy. With this configuration, if an incident triggers Monday through Friday between 0800 and 1700, User 1 and User 2 will be notified and assigned to the incident, since they are the only users who are on call at that escalation level during those times.
If an incident triggers Monday through Friday 1700 and 0800, User 3 and User 4 will both be assigned to the incident and notified, since they are the only users who are on call at that escalation level during those times.
On the weekends, Friday 1700 to Monday 0800, only User 5 and User 6 will be assigned to incidents and notified.
![image9.png Schedules added to an escalation policy](https://files.readme.io/11fde9f-image9.png)
Schedules added to an escalation policy
In this example, we have set up our escalation policy so that if an incident is not acknowledged or resolved within 30 minutes, it will escalate to the team’s manager, User 7.
Notify a Secondary Responder When the Primary Does Not Respond
It is a common need to set up a backup, secondary responder in case the primary responder cannot act on an incident for whatever reason. To create primary and secondary on-call users:
- Create schedules for the primary and secondary on-call levels.
- Add each schedule to the appropriate escalation level.
Create Schedules for the Primary and Secondary On-Call Levels
In this example, we will create a Primary schedule and a Secondary schedule. Both schedules rotate weekly on Monday at 0900 and have multiple people in the rotation. The person from the Primary schedule is the first responder and the person from the Secondary schedule is the backup, in case the first responder does not take action on an incident.

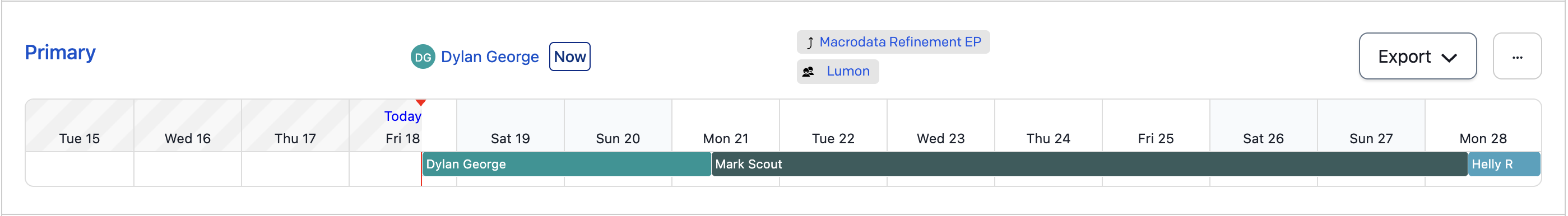

![image8.png Primary schedule](https://files.readme.io/7304a5f-image8.png)
Primary schedule

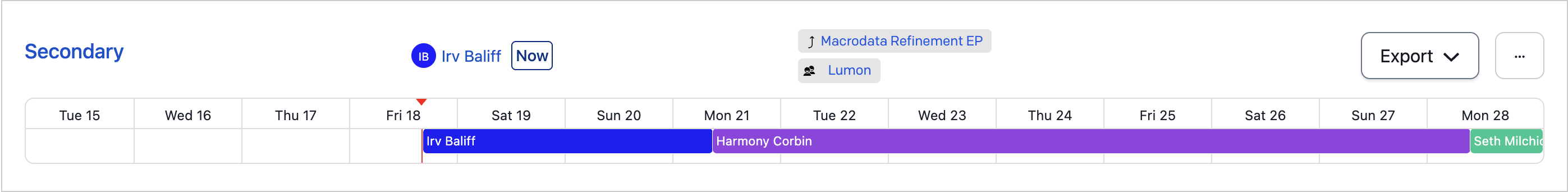

![image7.png Secondary schedule](https://files.readme.io/b143856-image7.png)
Secondary schedule
Schedule Layer Precedence
Please see the section Schedule Layer Precedence for more information about why two schedules are required for a primary/secondary setup.
Add Each Schedule to the Appropriate Escalation Level
Once we have created on-call schedules to represent primary and secondary levels, we can add each schedule to an escalation policy.

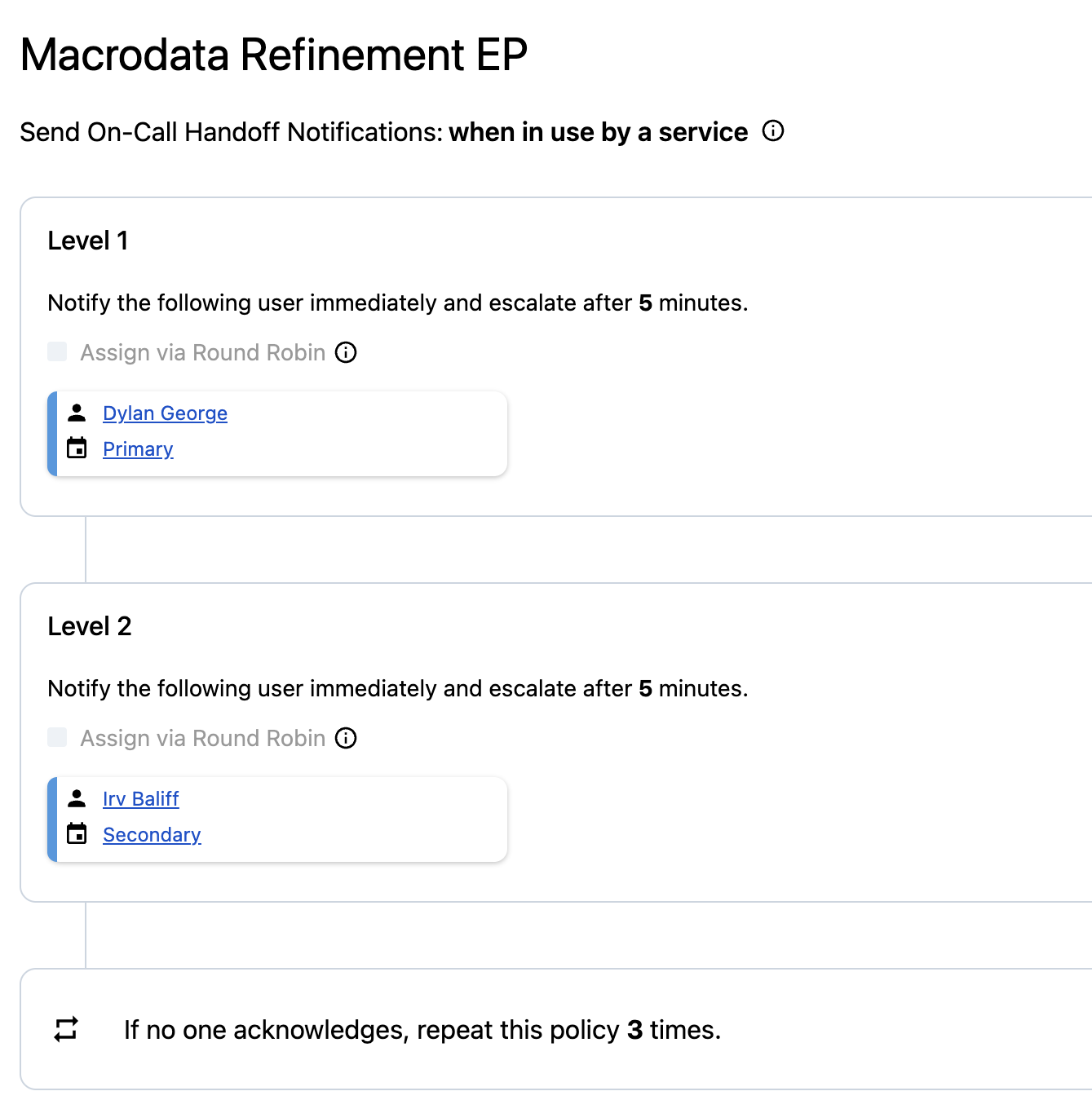

In the screenshot below, the Primary schedule is the first escalation level and the Secondary schedule is the second escalation level. The expected behavior for this escalation policy is as follows:
- When an incident triggers, it will be immediately assigned to whomever is on call in the Primary schedule.
- The Primary schedule user has 30 minutes to take action on the incident (i.e., acknowledge, resolve or reassign the incident)
- If the user on the Primary schedule does not take action on the incident within 30 minutes, the incident will escalate to the on-call user at the second escalation level.
- If the person on the Secondary schedule does not take action on the incident in 30 minutes, then the incident is reassigned and escalated to the person on the Primary schedule (Repeats 3 times If no one acknowledges incidents).
![image5.png Primary and Secondary schedules added to an escalation policy](https://files.readme.io/cc92655-image5.png)
Primary and Secondary schedules added to an escalation policy

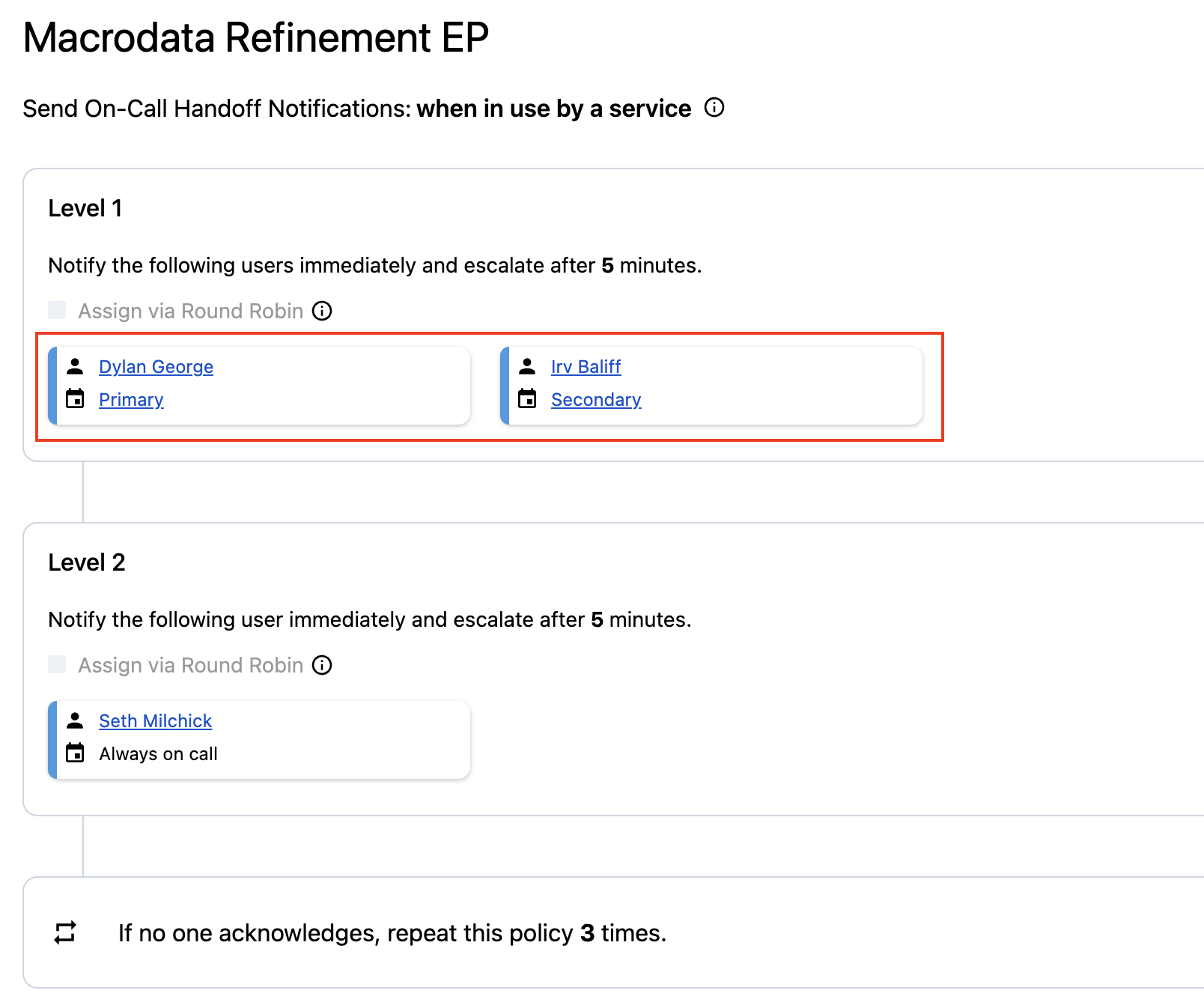

Alternatively, if you would like both your Primary and Secondary on-call users to be notified when an incident triggers, you can utilize multi-user alerting by adding both schedules to the same escalation level.
![image2.png Primary and Secondary schedules at the same escalation level](https://files.readme.io/acb4ef6-image2.png)
Primary and Secondary schedules at the same escalation level
Note
You must have a minimum of 5 minutes between escalation levels if you have more than one person/schedule in an escalation level.
A user who is on call for multiple target Schedules will only be displayed once.
The user will only be shown once per escalation level, but can be shown multiple times for multiple escalation levels as shown in the following image.
Schedule Layer Precedence
An important concept to grasp is that only one user per schedule can be on call. In other words, there is not a way to notify multiple users at once using a single schedule. With the goal of notifying multiple users at once, a natural first instinct would be to add multiple layers to a schedule — one layer for each on-call responder, for example. The way PagerDuty schedules work, however, is that the lowest layer on a schedule takes precedence over any others.

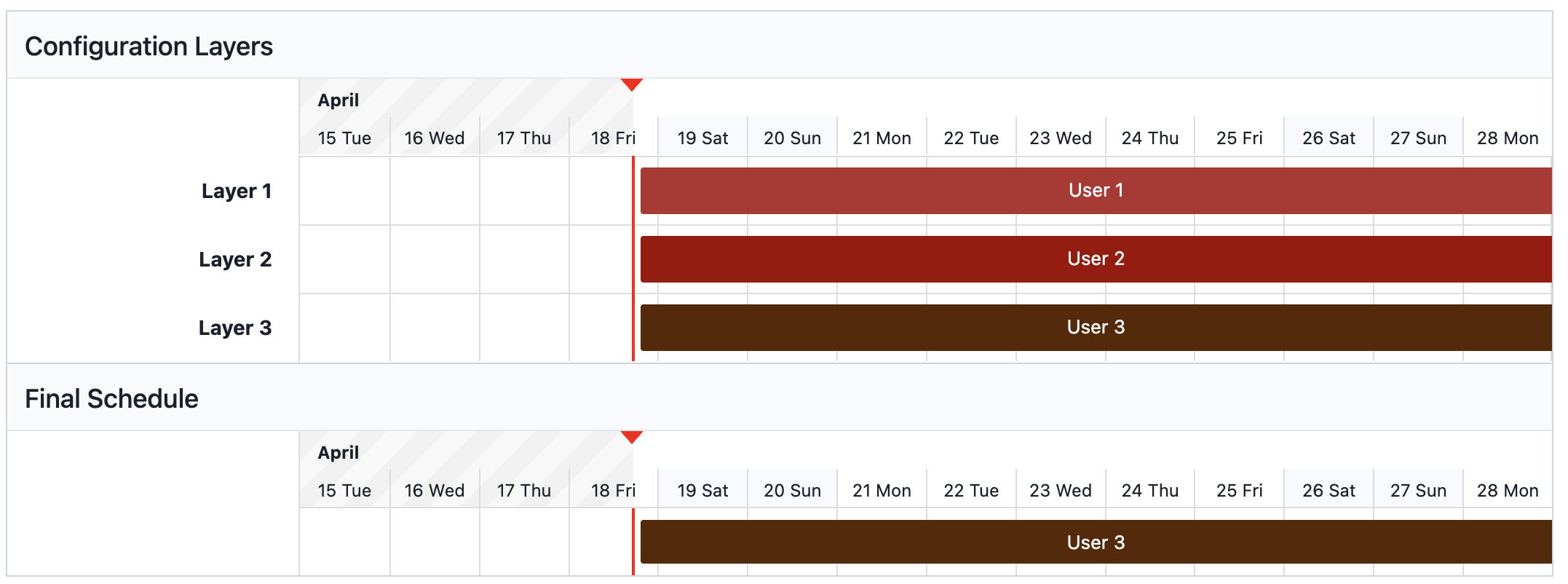

The following screenshot demonstrates what will happens when multiple schedule layers are stacked on top of each other — Layer 3 takes precedence over Layers 1 and 2:
![image1.png Bottom schedule layer precedence](https://files.readme.io/b995540-image1.png)
Bottom schedule layer precedence
With this in mind, adding multiple schedules and/or users to an escalation policy is the only way to notify multiple users at once.
